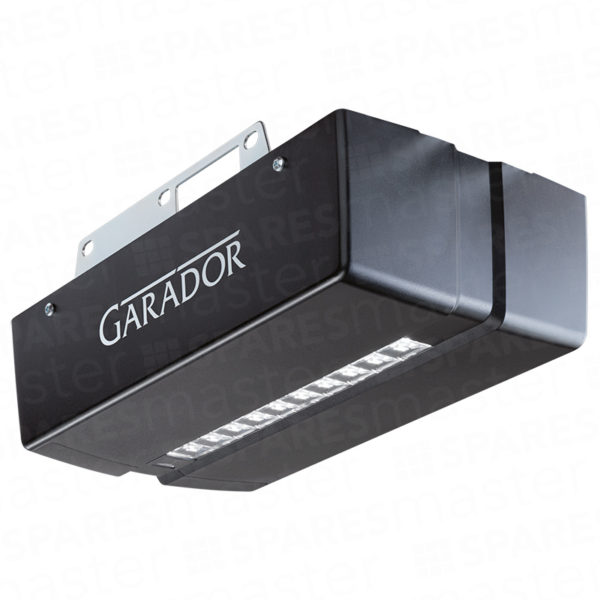

Garador GaraMatic 9 Series 4 Head Only

Garador GaraMatic 9 garage door opener

Garador GaraMatic 9 Series 4 Head Only

Garage door opener specifications:

  • Max garage door width 5000 mm
  • Max garage door height depends on boom selected
  • Max garage door surface 11.25 m²

Included:

  • Two handsets
SKU: GAO9054 Categories: , , , , , Tag:
  • Description
  • Features
  • Additional Technical Information

Description

Garage Door Operator – GaraMatic 9 – NEW Series 4 (Head Only)

The new range of GaraMatic operators have been designed to provide years of reliable service and the convenience of opening your garage door at the touch of a button. New energy efficient LED lighting, a power saving mode and smartphone connectivity are perfect for modern lifestyles.

The GaraMatic 9 provides excellent value, without compromising on functionality. It has a 600 N pull and push force and an automatic safety reversal system that recognises when there is an obstruction in the doors path. A mechanical locking system, built into the boom, ensures that no one can gain access to your garage by forcing the door open.

Supplied complete with two hand transmitters as standard
GaraMatic 9 operators now come with two 4-button micro hand transmitters as standard. The small form factor fits comfortably in your pocket and features a keyring eyelet for everyday use. Transmits on 868MHz frequency with bi-directional radio technology.

LED Lighting for energy efficiency
The GaraMatic 9 features an integral LED light with 10 LEDs for energy efficiency. Furthermore, it has a low power consumption of less than 1 watt in stand-by mode.

Third ventilation opening position
In addition to the half-open ventilation position, the GaraMatic 9 also has a one-third open ventilation position. This feature is only activated with the use of the climate sensor.

Secure mechanical locking system
The boom is equipped with a secure mechanical lock to prevent forced entry. Even in the event of a power cut, the door cannot be forced open.

Optional bluetooth receiver
Smartphone connectivity using the Garador BlueSecur app is possible for GaraMatic 9 via optional bluetooth receiver (HET-BLE). A larger and more accessible connection compartment on the back of the operator, makes the integrated circuit board easier to access when connecting accessories or smarthome systems.

Garage door operator for domestic use - not suitable for commercial use! For dry areas only.

Product Description:

Opening Speed 20cm / second
Cycles per day 12
Pull and push forces 600N
Peak force 750N
Maximum door width 5000mm
Integral LED light 10 LED lights
Automatic safety reversal Yes
Remote status query Yes
Bi-directional radio technology Yes
868MHz high frequency signals Yes
Soft start and soft stop Yes
Low power consumption (< 1 watt) Yes
