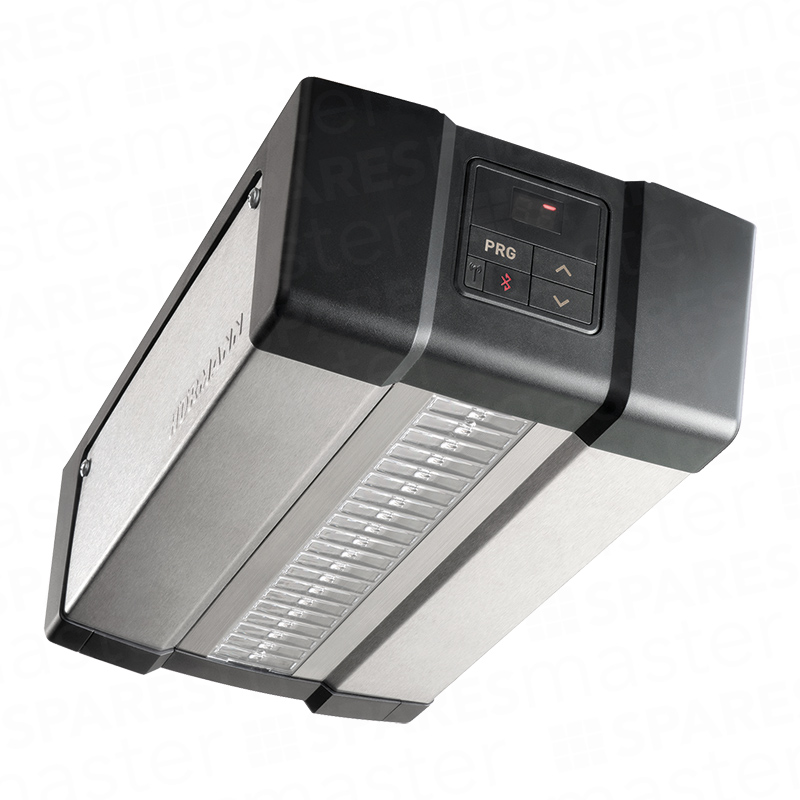

Hormann SupraMatic E BiSecur Series 4 Head Only

Garage door opener specifications:

Max garage door width 5500 mm
Max garage door height depends on boom selected
Max garage door surface 13.75 m²

Included:

Two handsets

SKU: HOO9104 Categories: Automation, Garage Door Openers, Hormann, Hormann, Manufacturers, Products, Special Offer, Top Sellers Tag: Bulky

Description
Additional Technical Information
Downloads

Description

Garage Door Operator – SupraMatic E BiSecur – NEW Series 4 (Head Only)

The latest generation of Hörmann garage door operators now feature the new Hörmann integrated Bluetooth receiver. The SupraMatic garage door operators feature the same proven Hörmann technology as all Hörmann premium operators.

Some of the NEW series 4 operator features include:

Energy-efficient LED lighting for bright, even garage illumination
Low power consumption of less than 1 watt in stand-by mode
Integrated Bluetooth receiver (can be turned on and off) for controlling the operator using the BlueSecur app on a smartphone
Up to 75% faster door opening in comparison to ProMatic series 3
New 3rd opening height for “Ventilation” setting
HCP interface to connect accessories or external SmartHome systems

SupraMatic E

Pull and push force: 650N
Peak force: 800N
Opening speed: max. 25 cm/s ¹
Door width: up to 5500 mm (max. 13.75 m² door surface)

1) Depending on door type, door leaf weight and door size

Garage door operator for domestic use - not suitable for commercial use! For dry areas only.

Product Description:

Door cycles (Open / Close) Per day / per hour	25 / 10
Doors with wicket door / timber doors	Yes / Yes
Max. door width	5500mm
Max. door leaf surface	13.75m²

Operator Details:

Motor	24 V DC gear drive
Mains voltage	230 V - 240 V AC, 50 / 60 Hz
Power input	0.2 kW
Pull and push force	650 N
Peak force	800 N
Door travel speed ¹	max. 25 cm/s ¹ for travel in the OPEN direction max. 14 cm/s ¹ for travel in the CLOSE direction
Standby	< 1 watt
Housing	Stainless steel and plastic, galvanized steel base plate
Temperature range	-20°C to +60°C
Protection category	Only for dry rooms

Control Electronics:

Display	Double 7-segment display
Operation and programming	Control element with Open / Close / PRG buttons
Impulse control	Yes
Adjustable power limit	Yes
Adjustable soft start and soft stop	Yes
Adjustable belt relief	Yes
Adjustable operator light / partial opening / ventilation position	Yes
Adjustable automatic timer	5 - 300 sec.
Adjustable automatic timer partial opening	5 - 240 min.
Adjustable / pre-set operator light	30 - 600 sec. / 60 sec.
High speed opening function	Yes

Equipment:

Hand transmitter 868MHz	2 x 4-button hand transmitter HSE 4 BS Textured surface with chrome caps
Integrated receiver 868MHz	Bi-directional 5-channel receiver BS
Integrated Bluetooth® receiver 2.4GHz	Yes
LED lighting	20 LED
Connection for photocell / closing edge safety device	Yes
Connection of external control elements	Yes
Connection for emergency battery	Yes
Quick release operated from the inside	Yes
Connecting lead with British 13amp 3-PIN plug	Yes
Anti-lift kit for break-in resistance	Yes
Universal installation bracket for up-and-over doors and sectional doors	Yes
