Comfort 270 – Operator system for garage doors

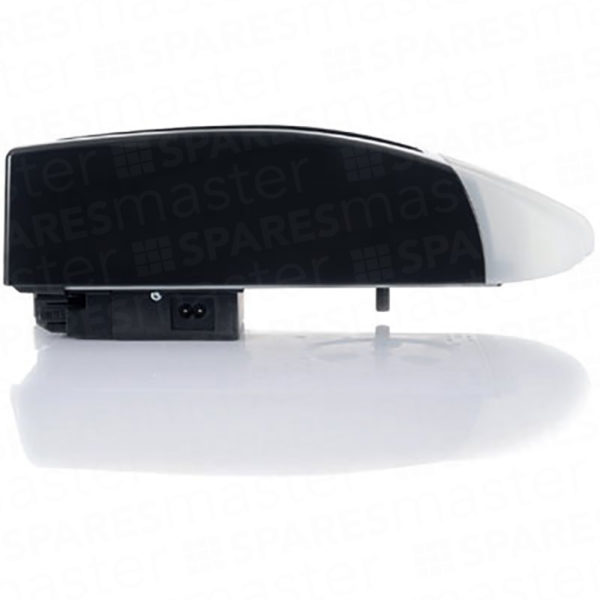

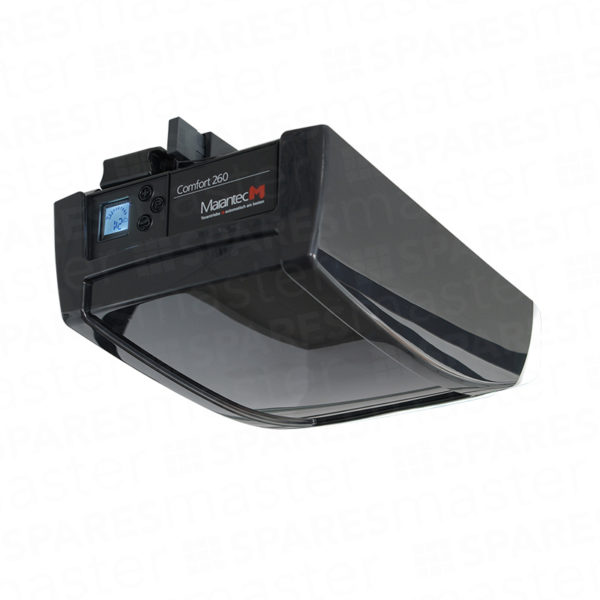

Motor unit Comfort 270 (Standard)

Operator system for garage doors – domestic use

• For up-and-over doors up to a door width of 5000 mm and a door weight of 165 Kg
• For single-skinned sectional doors up to a door width of 5500 mm and a door weight of 165 Kg
• For double-skinned sectional doors up to a door width of 5500 mm and a door weight of 165 Kg
• For retractable up-and-over doors and canopy doors up to a door width of 5000 mm, a door height of 2250 mm and a door weight of 165 Kg
• For maximum 50 complete open/close functions per day – 100 one way operations per day (corresponding to class 2 of the RAL quality mark)
• For operator rails with roller chains, ball rope or toothed drive belts

Functions

• Economy mode
• Reference point technique
• Electronic travel cut-out
• Soft start/soft stop
• Push-open security
• Anti-blocking device
• Excess travel stop
• Release from inside
• Connection for pushbuttons, code keypads and key switches
• Automatic cut-out `Open` and `Close` separately programmable
• Partial opening programmable
• Door travel speed `Open` and `Close` separately programmable
• Soft run position `Open` and `Close` separately programmable
• Soft run travel speed `Open` and `Close` separately programmable
• 3 minutes light programmable for lighting the garage
• Automatic timer function
• Connection potential-free limit switch information

Package

• Motor unit Comfort 270 with multbit remote control 868 MHz
• Digital 302 Mini hand transmitter, 2-channel
• Digital 313 Micro hand transmitter, 3-channel
• Universal mounting kit for up-and-over doors and sectional doors

Electrical details

• Nominal voltage 230 V
• Nominal frequency 50 Hz
• Power consumption 1,1 A
• Power input in operation 0,25 KW
• Power input stand-by 1,7 W
• Operation mode (duty cycle) KB 2 min.
• Control voltage 24 V DC
• Protection category motor unit IP 20
• Protection class II

Mechanical details

• Push and pull force 750 N
• Door travel speed 160 mm/sec.
• Opening time (door-specific) approx. 15 sec.

General details

• Measurements (Motor unit) 220 x 125 x 395 mm
• Weight 4,1 kg
• Range of temperature -20°C to +60°C
• Illuminant LED (extendable) 40 / 80 W

Retrofitting of potential-free signal relay possible for;

• Signal light
• Wiping impluse
• 3 minutes light
• Final position message
• Alarm system
• Malfunction message
• Error message
• Reset function
