Description

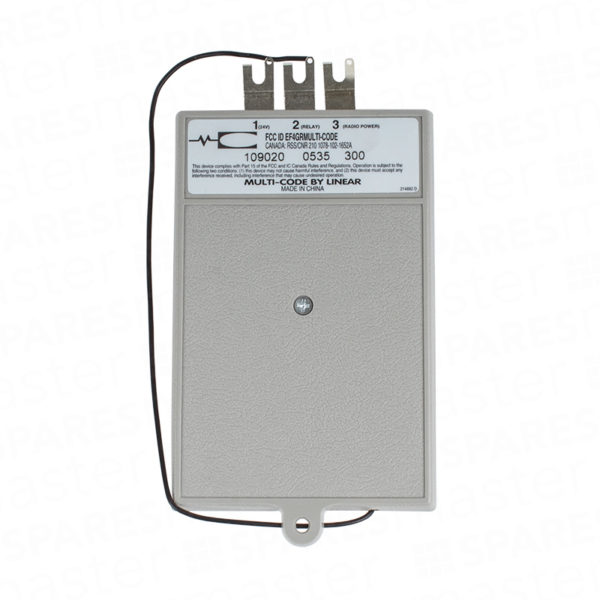

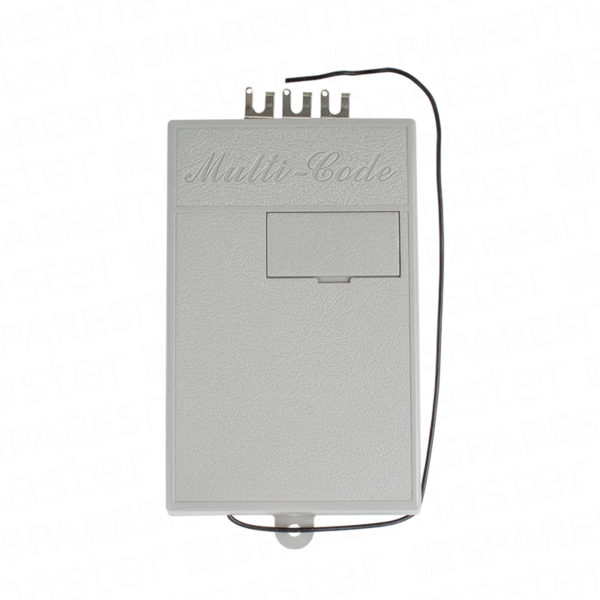

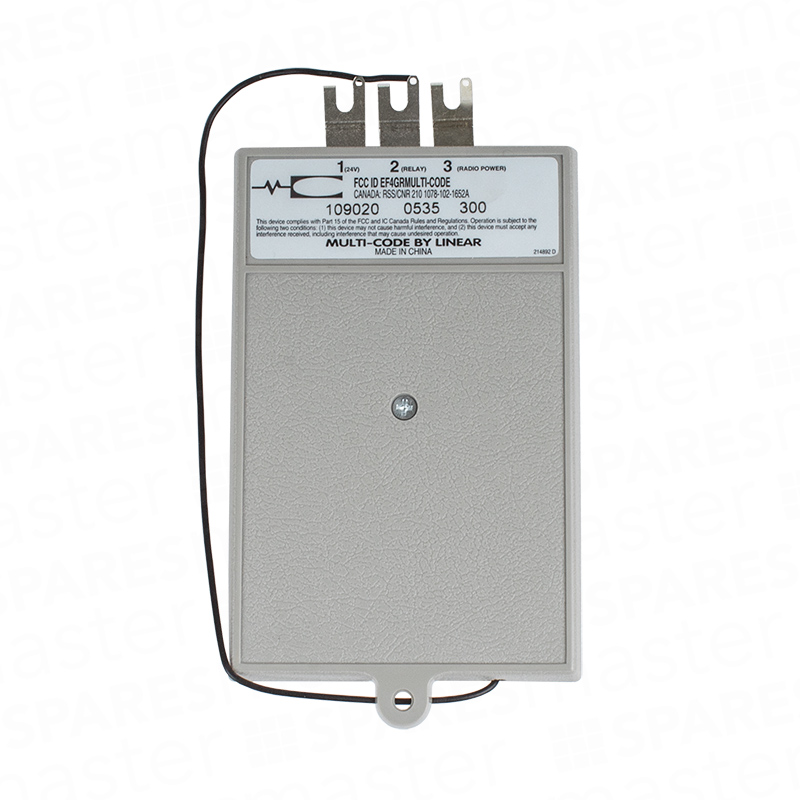

One Channel 300MHz Radio Receiver RX1

A one channel 300MHz radio receiver utilising dip switch coding as fitted to many American garage door openers installed in the US home market and also fitted to some that were imported into the UK.

The receiver can either be mounted directly to the three terminals on the garage door opener or up to 3 feet (900mm) away using our Extension Flylead CPR9681 listed under accessories in the Multicode section.

Care should be taken to correctly identify these handsets because the 300MHz version looks identical. however. the frequency is printed on a white label on the back of the handset and also on the receiver making identification easier.

If the label is not present look at the length of the antenna on the grey plastic receiver – 10″ long (250mm) denotes 300MHz and 70″ 1750mm) denotes 40.685MHz.. If the receiver is not grey plastic it is probably a 173.3MHz model.

This type of radio control system has the ability to support an unlimited number of handsets on a single receiver making it ideal for multi car garages and secure compounds.

PLEASE NOTE: These 300MHz controls are only sold for use in the U.S.A. and other countries where legal to do so. They are not approved for use in the UK.
