Somfy Dexxo Optimo 800 RTS

Garage door opener specifications:

Max garage door height depends on boom selected
Max garage door surface 10 m²

Included:

Two handsets

SKU: SOO9705 Categories: Garage Door Openers, Manufacturers, New Products, Products, Somfy, Somfy, SWS SeceuroGlide Tag: Bulky

Description
Features
Additional Technical Information
Downloads

Description

Somfy Dexxo Optimo 800 RTS

The ideal solution for medium sized garage doors.

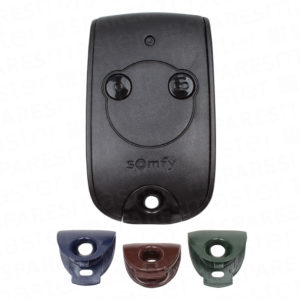

For garage doors up to 10m², providing a speed up to 14cm/s. With convenient features such as partial open option for faster access or ventilation. The Somfy Dexxo Optima RTS motor comes with 2 Keytis RTS remote controls, which can each command 2 different Somfy products, helping you harmonize your Somfy living convenience.

Benefits Quick and easy to install, even easier to use. The Dexxo RTS range is perfect for both you and your customers.	Installer Benefits Dexxo is quick and simple to install. Its setting and diagnostics are user-friendly and clear, and can be accessed easily to save you time in set-up and maintenance.
Plug & play system The motor has built-in safety features – so no requirement for a safety edge. Compatible with all other Somfy products. Quick connect: mains supply cable, motor and accessories.	Quick & simple installation Simple, quick and intuitive 90 second set up. Real-time feedback during the commissioning phase. Adjustable pre-programmed settings. Motor direction/limit settings completed from the control panel.
Real time diagnostics Motors provide real-time status. Motor thermal and safety brake status. Additional photo cell options. Back up battery & battery power options available.

Power supply	230 V - 50 Hz
Standby power consumption	4 W
Max. power consumption	120 W
Tensile force - Maximum force	800 N
Operation	20 cycles per day with a standard rail (tested for 36,500 cycles)
Number of storable channels	32
SOMFY radio frequency	433.42 MHz RTS
Integrated lighting	24 V / 21 W max. E13 socket
Operating temperature	-20°C / +60°C
Electrical insulation	Class 2 double insulation
Index of protection	IP20
Safety inputs	Dry contact NC
Photoelectric	TX/RX cells
Wired control input	Dry contact input N/O
Maximum opening speed	14 cm/s
Maximum closing speed	12 cm/s
End limits	Mechanical stop when opening, electronic when closing: stored closing position
Accessories supply output	24 V - 500 mA max
Forced operating mode	By pressing and holding the motor control button
Timed lighting (after movement)	Fixed: 60 s
Integrated obstacle detection	Adjustable sensitivity: 4 levels
Operation in the event of obstacle detection	Total reopening
Gradual starting	Yes
Motor warranty	5 years
